FSW-style Squad Movement

[GiffE]

Hey,
I'm trying to code a Full Spectrum Warrior style mod in DP. Basically how the game play is that you control a squad of 4 bots which you can position tactically in places of cover (having cover where ever u go is always a good idea.) The problem I'm having i need to move the move cursor near a window and all the cursors lock into the best position lined up along the wall.

This is what FSW-style movement looks like:
http://s33.photobucket.com/albums/d75/G ... -58-51.flv

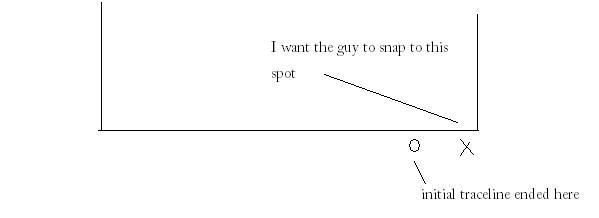

Here is a pic of a possible senarior


I've coded all the simple things such as the camera view and the bots(although they need some better brains) mainly i just need some help on the movement (getting them to line up along a wall near a corner if the cursor is near one.

Logically this is what I THINK i need to do:
Trace to wall
then get the length of the wall to the right/left
the prime spot is the first spot on the corner which can fit the dimensions of a player.
Then find the remaining spots to the right/left (evenly spaced)

BTW i just need to find the origins that i will be sending the bots to, "spots" = origin

Any idea how to do this or some psuedo code on how to make a FSW style movement.

Thanks,
Gif

[Entar]

This mod sounds a little like Quake Matt's Reinforcers, which was really cool - http://quakematt.quakedev.com - but it looks like you're taking the pathfinding / cover a step further...

[GiffE]

I was actually using quakematt's mod as an example.
so pretty much yea except with 4 guys moved with 1 command and they can have some better positioning.

I think i could solve this if I could find the corner of a wall then move over about the size of a player (so he can squeeze in there)

[Quake Matt]

Thanks for the feedback!

The most effective way to do this, I think, would be to edit the map and place two 'cover_location' entities at the corner. Then you can find all nearby entities of this kind an move to the best one.

Of course, if editing the map's not possible, there's another approach you could try. Whenever you run a traceline command, Quake will generate a vector called 'trace_plane_normal' which, as you'd expect from a normal, will point directly away from the wall, perpendicular to the surface. If you then run the code

makevectors(vectoangles(trace_plane_normal));

the global v_right vector will be set so it runs parallel to the surface. You can then run some subsequent tracelines at several points along this vector to check where (and if) the wall ends, and move to that point instead.

If it'd help, I'll try to draw a picture of what I mean.

[GiffE]

[GiffE]

[leileilol]

why not Rainbow Six Lockdown style?

[GiffE]

...
Not really helpful leileilol
